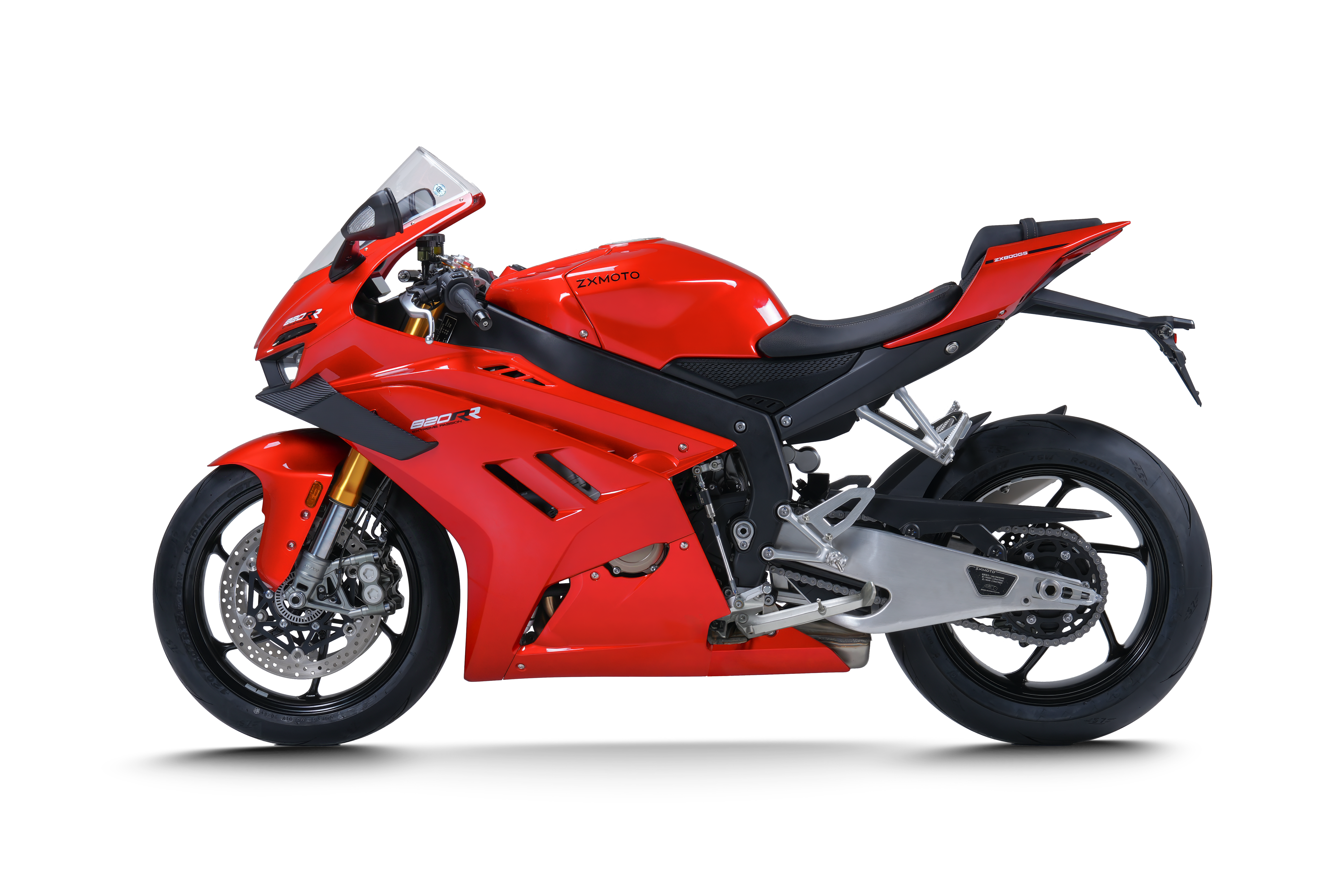

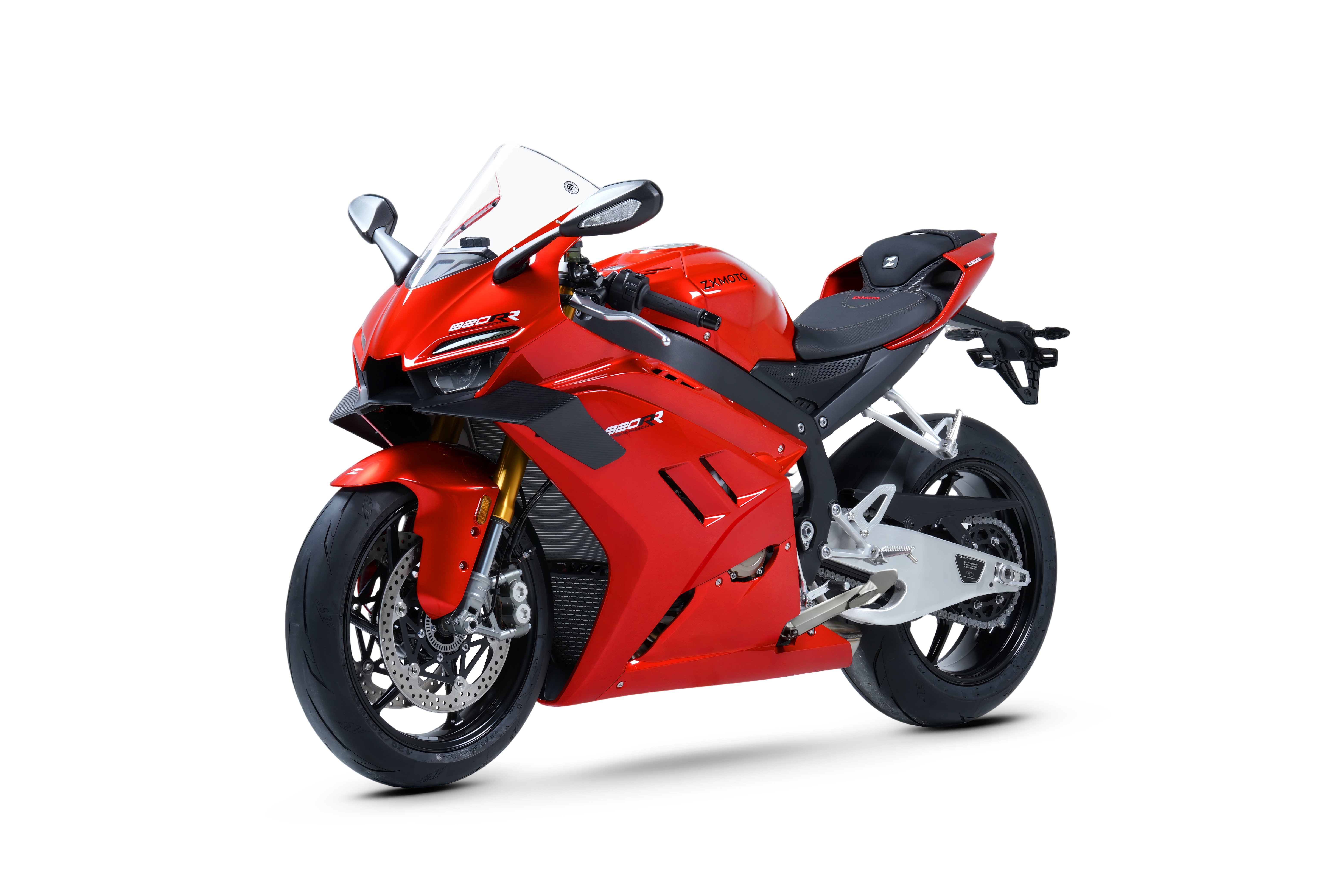

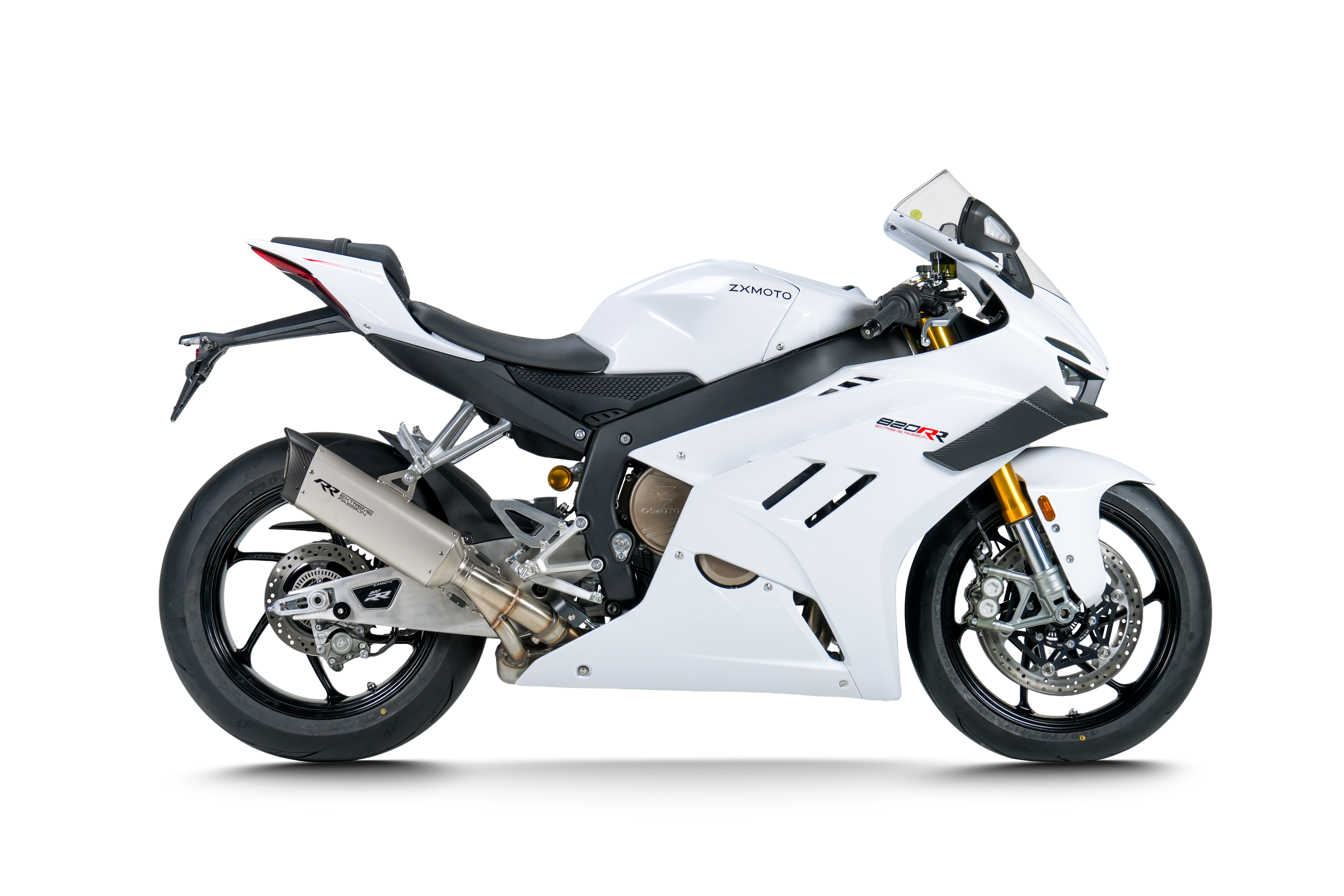

820RR

SPECS

Engine Type Three-cylinder,DOHC,12-valve,Oil&liquid-cooled
Displacement 818.8 cc
Bore x Stroke 80 x 54.3 mm
Maximum Power 99 kW @ 12000 rpm
Maximum Torque 80 N·m @ 9500 rpm
Compression Ratio 13:1
Clutch Type Wet multi-plate slipper clutch
Fuel delivery BOSCH EFI
Throttle Electronic Throttle

Front Suspension Fully adjustable preload and damping
Rear Suspension Central monoshock, fully adjustable preload and damping
Trail 102.2/104.2 mm
Front Brake 320mm dual floating disc, 4-Piston opposed caliper (TAISKO™),Radial Separate-type Brake Master Cylinder
Rear Brake 220mm fixed brake disc, 2-piston opposed caliper (TAISKO™)
Front Tire CST™ S7 120/70 ZR17
Rear Tire CST™ S7 190/55 ZR17
Rim Aluminum alloy cast front MT3.5x17 rear MT6.0x17

Length x Width x Height 2050 × 745 × 1160 mm
Wheelbase 1419.5 -1423 mm
Seat Height 825 mm
Curb Weight 193 kg
Fuel Capacity 18 L
Steering Angle 26°
Rake Angle 24.2° / 24.6°

Engine Type Three-cylinder,DOHC,12-valve,Oil&liquid-cooled
Displacement 818.8 cc
Bore x Stroke 80 x 54.3 mm
Maximum Power 107 kW @ 12500 rpm
Maximum Torque 83 N·m @ 10000 rpm
Compression Ratio 13.3:1
Clutch Type Wet multi-plate slipper clutch
Fuel delivery BOSCH EFI
Throttle Electronic Throttle

Front Suspension Fully adjustable preload and damping (KYB™)
Rear Suspension Central monoshock, full adjustable preload and rebound damping (KYB™)
Trail 101/103 mm

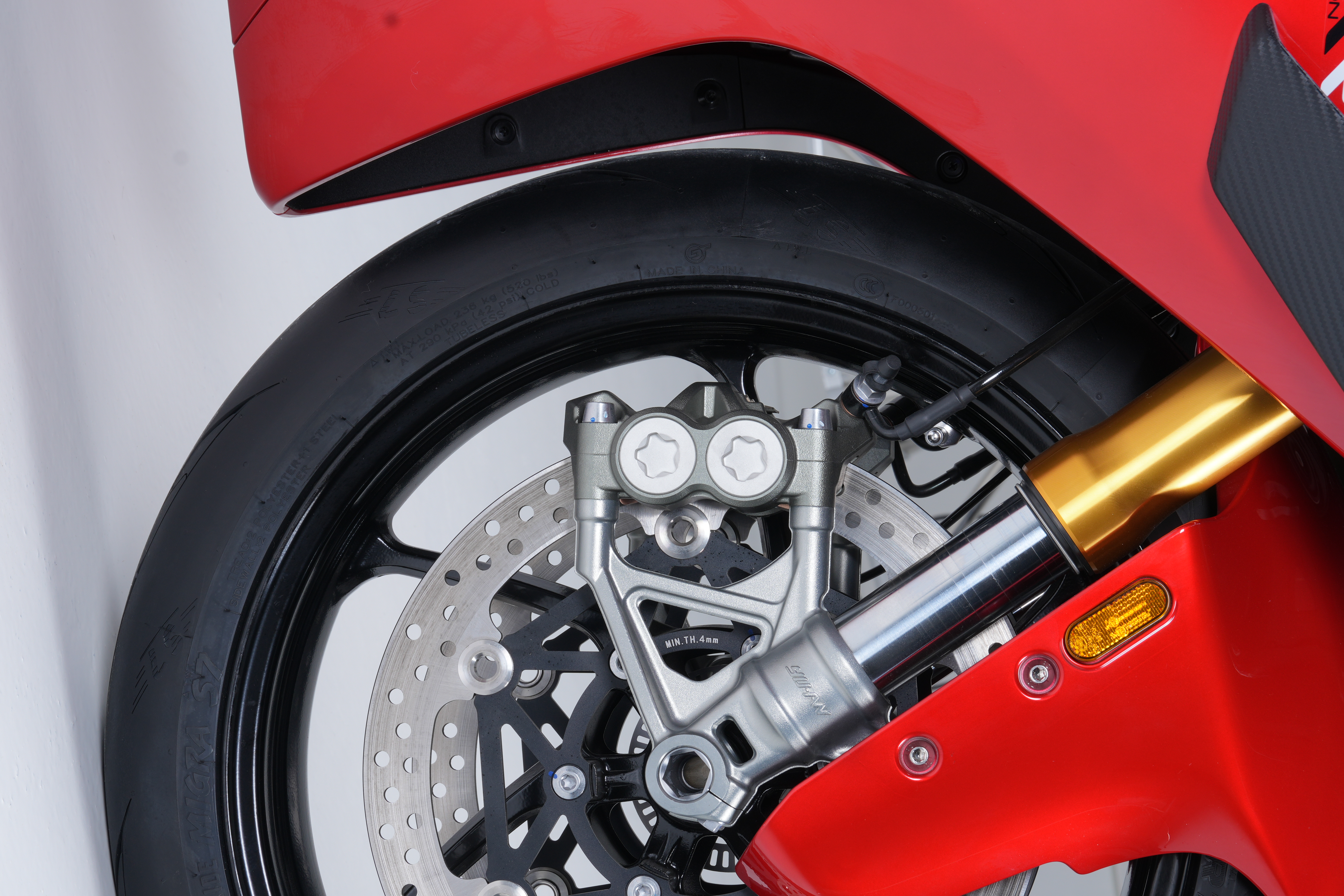

Front Brake 330mm dual floating disc, 4-Piston opposed caliper (BREMBO™ M50),Side-mount Radial Master Cylinder (BREMBO™)
Rear Brake 220mm fixed brake disc, 2-piston opposed caliper (BREMBO™)
Tire Pirelli™ V4 FRONT:120/70 ZR17 REAR:200/55 ZR17
Rim Forging CNC FRONT:MT3.5×17 REAR:MT6.0×17

Length x Width x Height 2050 × 745 × 1160 mm
Wheelbase 1419.5-1423 mm
Seat Height 825 mm
Curb Weight 186 kg
Fuel Capacity 16 L
Steering Angle 26°
Rake Angle 24.2° / 24.6°

Tank Rotomolded fuel tank
Fiber winglets Carbon

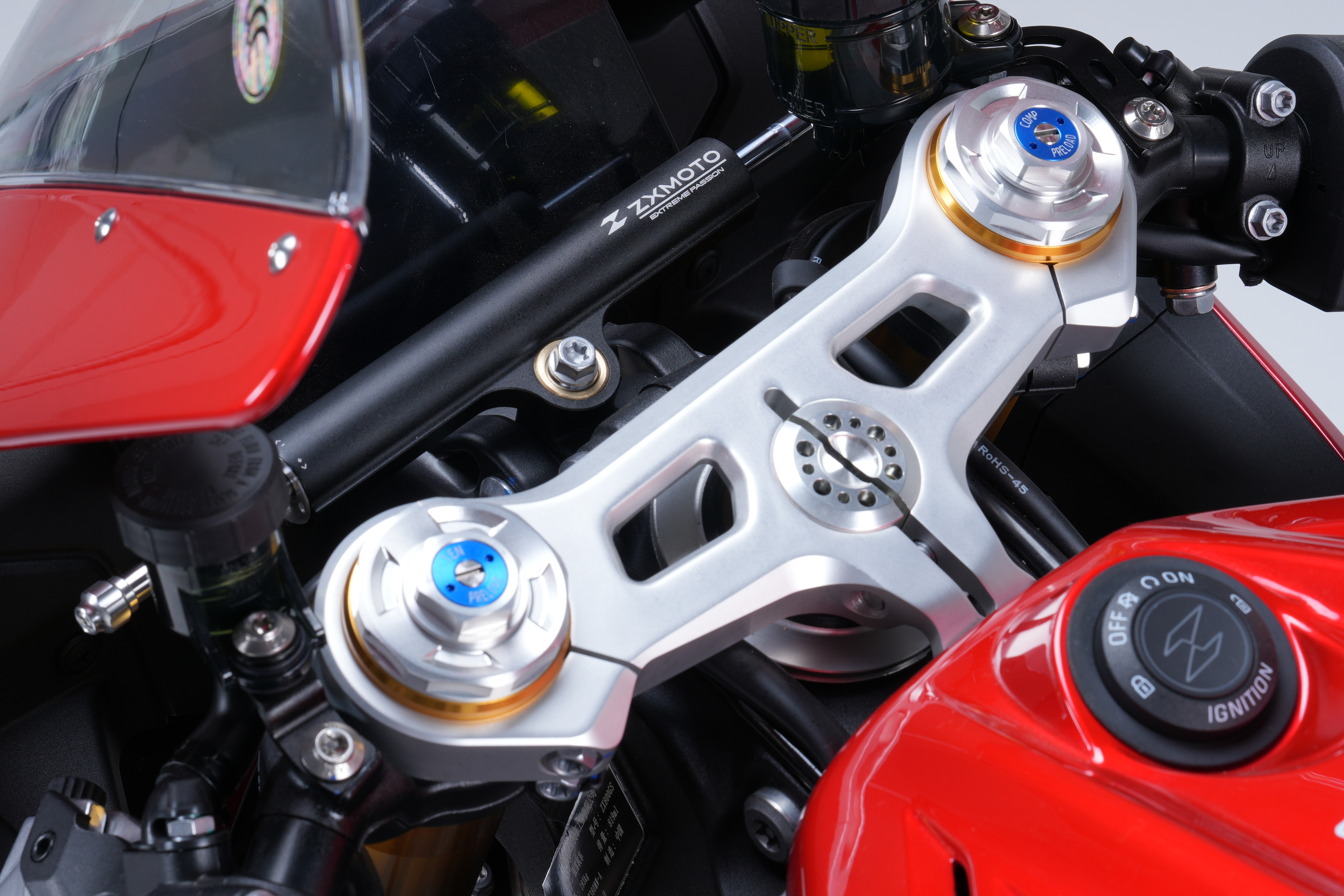

Connecting plate Forged CNC

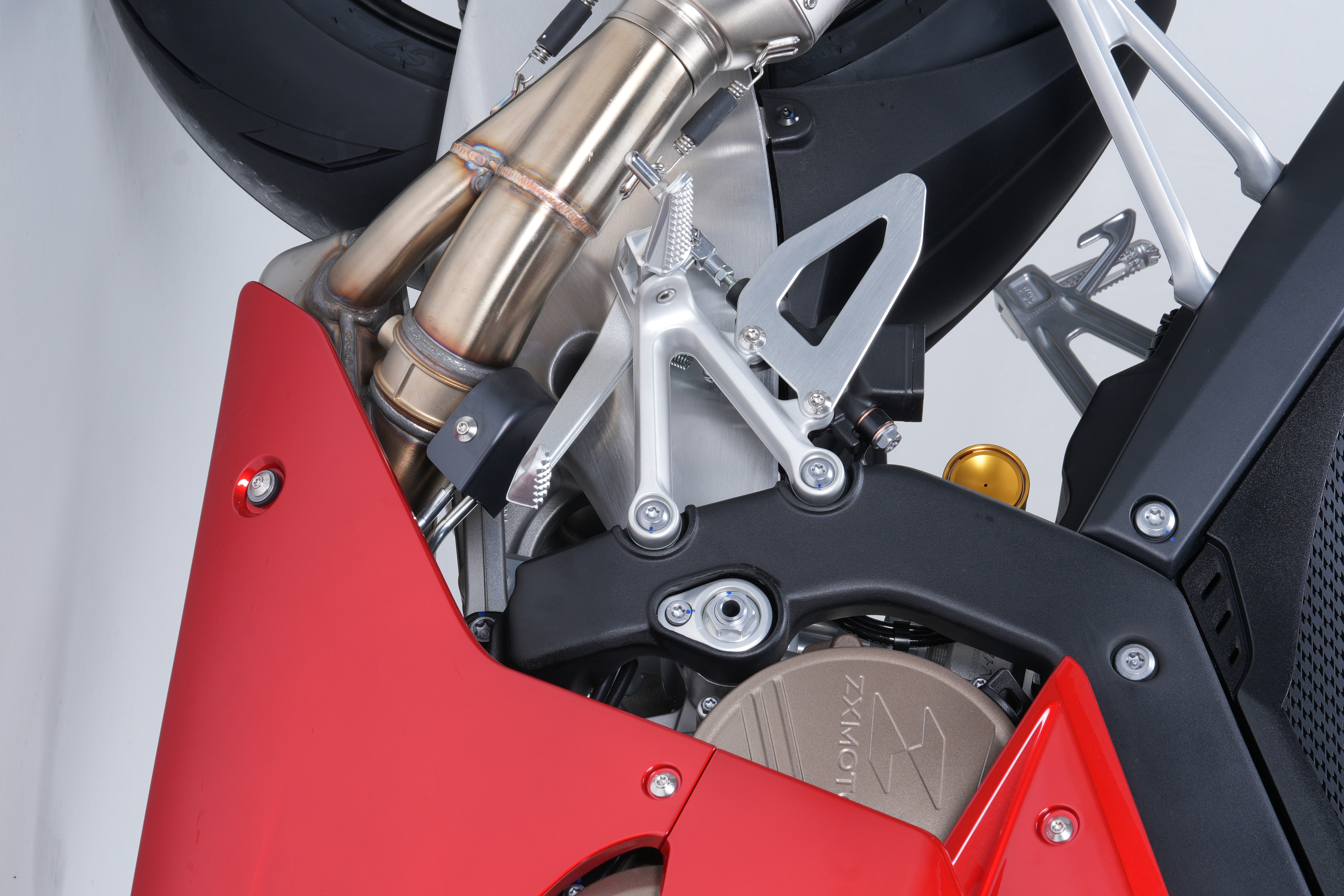

Footpegs CNC adjustable
Wheel axle Aluminum alloy

ABSOLUTE PRACTICAL PERFORMER

The 820RR race bike has shown dominant performance in the 2026 WorldSBK season, securing 5 first-place finishes and 2 fastest lap in the WSSP class so far, ranking 3nd in the manufacturer standings. For more details, please follow ZXMOTO FACTORY EVANBROS RACING.

TRIPLE FORECE·DOUBLE DOMINATION

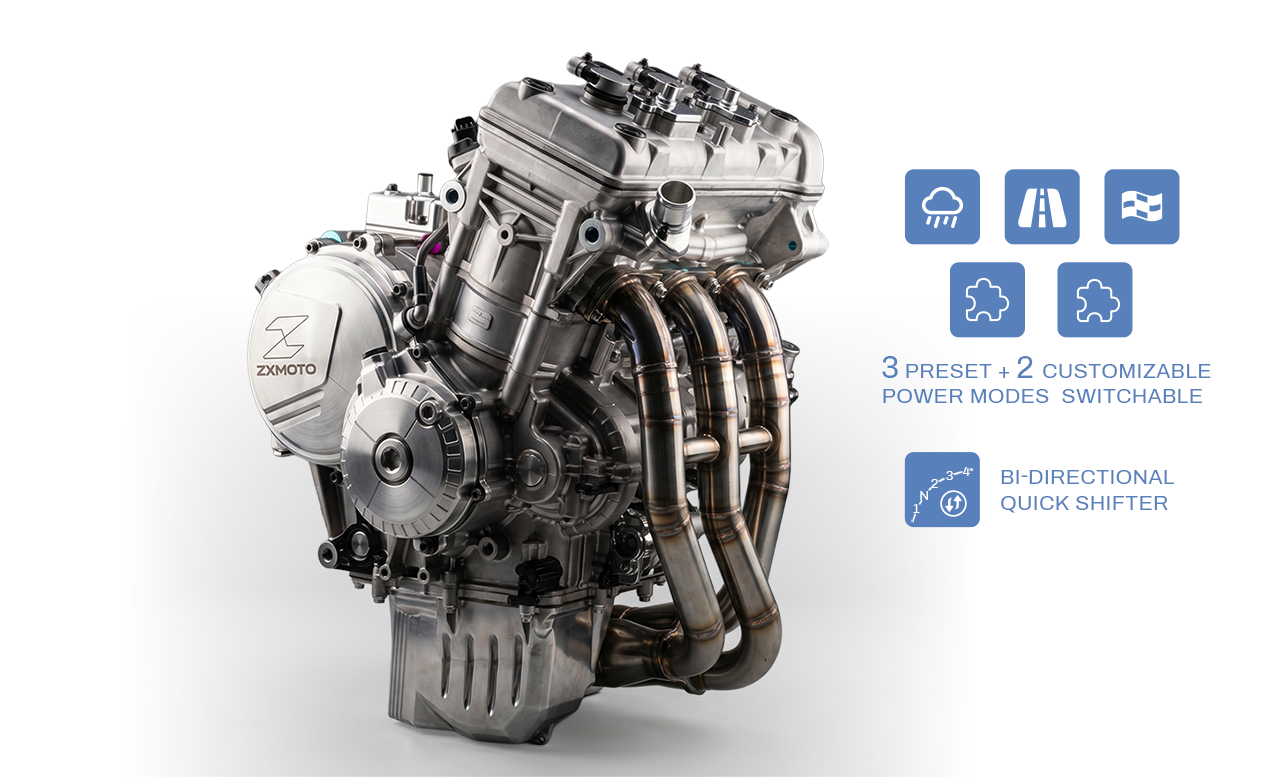

The in-house developed inline 3-cylinder 12-valve engine of ZXMOTO delivers 135 horsepower at 12,000 rpm, with a 0-100 km/h acceleration of merely 2.81 seconds. Matched with the multi-calibrated BOSCH electronic throttle system, it achieves ultra-sensitive and ultra-precise power response. To tame this high-performance powertrain, the 820RR is equipped with dual cooling systems (oil cooling & liquid cooling), guaranteeing outstanding stability during aggressive power output.

PRO AS IT LOOKS , AGILE AS IT RIDES

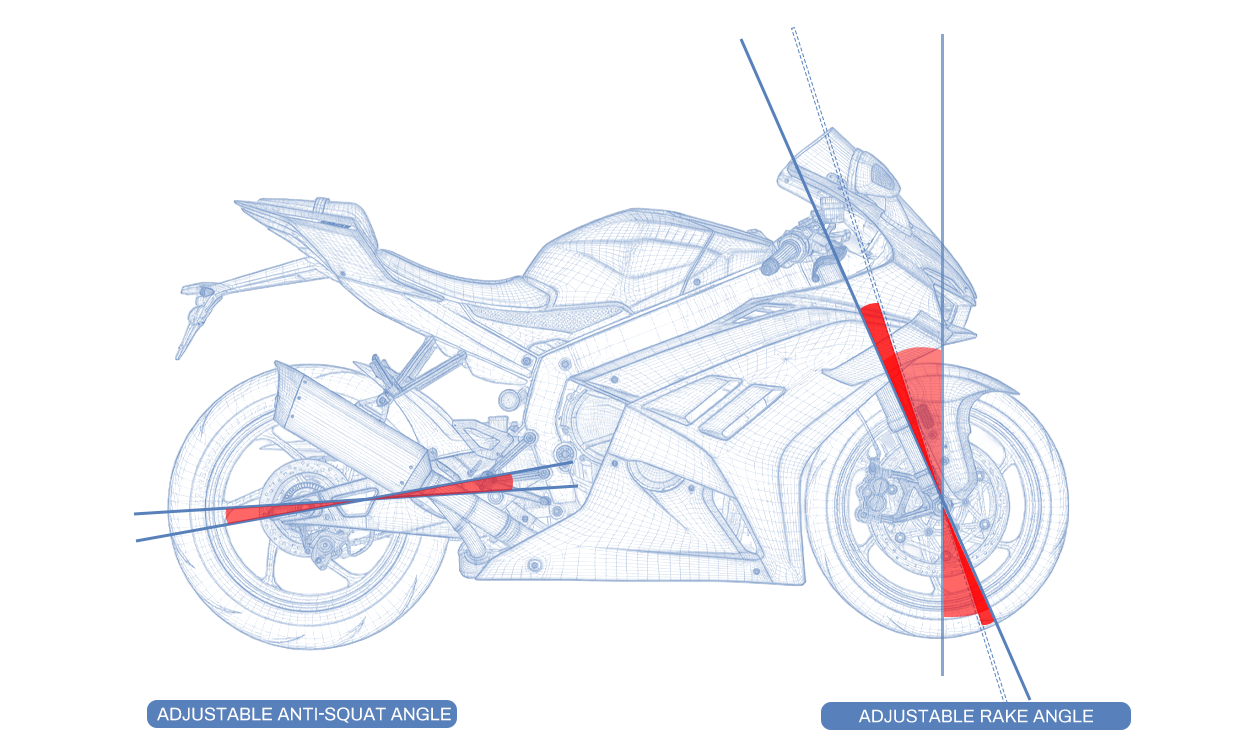

The 820RR innovatively adopts an adjustable rake angle and anti-squat angle design. Riders can make personalized adjustments according to riding scenarios to acquire the most ergonomic riding posture. Lightweight engineering reaches new heights once again: fully cast aluminum frame, aluminum exhaust system, aluminum swingarm, and extensive magnesium alloy components. Beyond that, the 820RR integrates sophisticated lightweight optimization into numerous detail designs. It boasts a curb weight of only 193kg and superior unsprung mass performance, delivering a wind-slicing riding experience on every journey.
